Rubber Washers are also called Rubber Washer Spacers, or Rubber Washer Ring Seals. As a leading rubber washer maker, Savvy maintains over comprehensive precision molds covering standard flat and custom profiles. This enables the production of ISO332-1 M2 (F) compliant washers with micron-level tolerances (±0.1mm), ensuring reliable leak-proof sealing in demanding applications.
What are Rubber Washers?
A rubber washer is commonly a flat, ring-shaped component, made from flexible rubber elastomers like NBR, FKM, EPDM, Silicone, etc. Its central hole allows bolts, screws, or pipes to pass through —intentionally designed to be smaller than the corresponding nut, head, or fastener, while the outside diameter of the washer is bigger than the fastener head. When compressed during tightening, it elastically deforms to create a reliable seal against leaks (water, air, etc.) and absorbs vibrations that could loosen the connection. This dual action makes it essential for both sealing and shock absorption in countless applications.
Beyond sealing and anti-vibration control, these rubber washers protect surfaces. They cushion contact between metal fasteners and adjoining materials, preventing scratches and wear. Crucially, they spread the clamping force from nuts or bolts over a wider area. This pressure distribution ensures secure, long-lasting fastenings and shields delicate surfaces from damage under concentrated loads. From plumbing to automotive systems, this small part is vital for durability and performance.
Rubber Washer Types
Rubber washers are designed in various structural shapes or size specifications to address specific sealing challenges, optimise load distribution, and ensure compatibility with complex assembly interfaces.
As the most common and versatile rubber washer type, Flat Rubber Washers dominate approximately 78-82% of industrial applications. In industrial contexts, the term “rubber washer” universally refers to flat rubber washers unless otherwise specified. Custom geometries (e.g., cone, curved, or bevelled washers) require tailored manufacturing and represent specialised solutions for non-standard interfaces.
I. By Structural Profile
| Type | Product Picture | Structural Feature | Core Function | Typical Application |
|---|---|---|---|---|
| Flat Rubber Washer |  |
Simple uniform thickness ring | Basic sealing & load distribution | General fasteners, plumbing joints |
| Cone Rubber Washer |  |
Conical/tapered cross-section | Progressive compression for high-pressure sealing | Hydraulic fittings, pressurized valves |

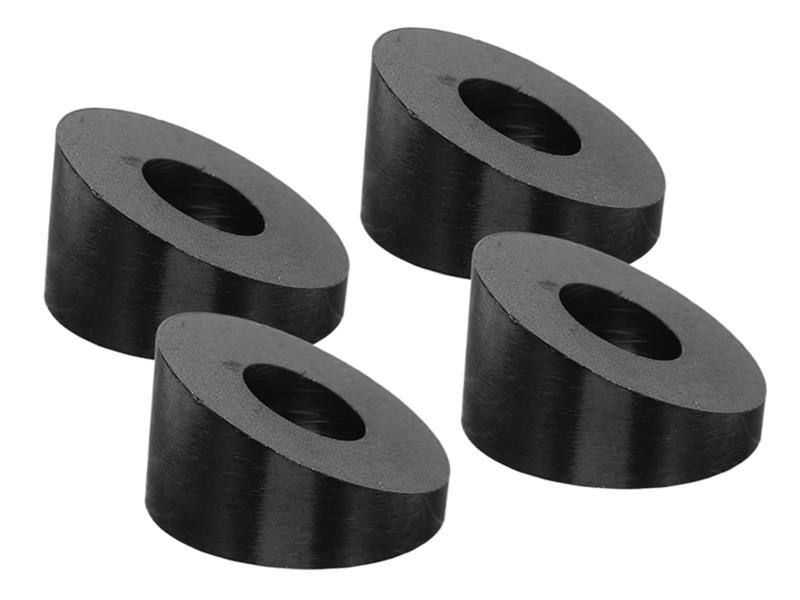

| Angled Rubber Washer |  |
45°-90° sloped edge | Seals uneven or angled surfaces | Pipe flanges, machinery with non-parallel faces |

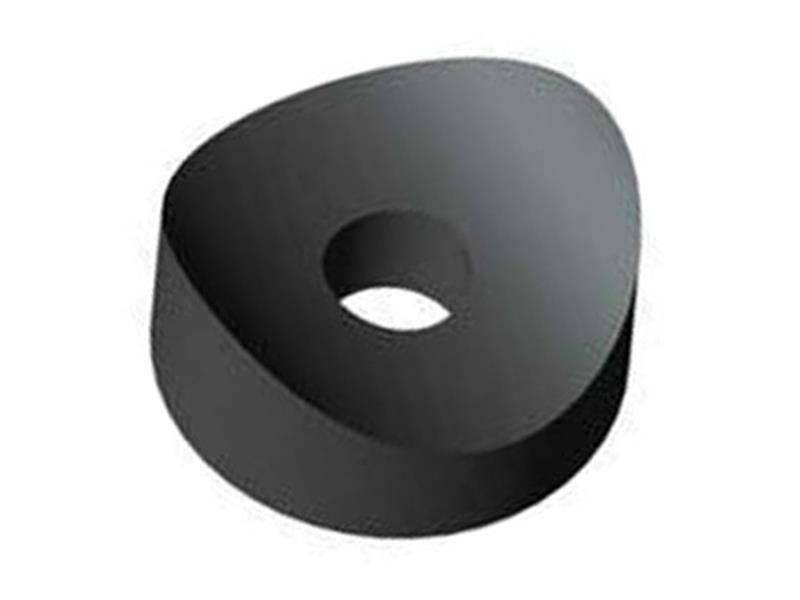

| Curved Rubber Washer |  |
Concave or convex surface | Compensates for surface irregularities | Automotive suspension, curved housings |
| Double-Sided Washer |  |
Dual sealing layers (may combine materials) | Seals both sides of a connection simultaneously | Electronics enclosures, sandwiched panels |
| Beveled Rubber Washer |  |
Single-side sloped edge (15°-30°) | Directional pressure focus for leak prevention | Pump housings, compressor assemblies |
| Rubber Washer with Groove |  |
Surface channels (O-ring like ridges) | Enhanced sealing via multi-point contact | High-vacuum systems, chemical reactors |
| Rubber Washer with Mesh Filter |  |
Rubber perimeter + embedded metal/polymer mesh/screen | Seals while filtering particulates | Fuel line inlets, irrigation systems |
II. By Size Specification
| Type | Product Picture | Size Parameters | Core Function | Typical Application |
|---|---|---|---|---|
| Large Rubber Washer |  | OD*: 20-100 mm | Distributes load over wide areas | Pipe flange connections |

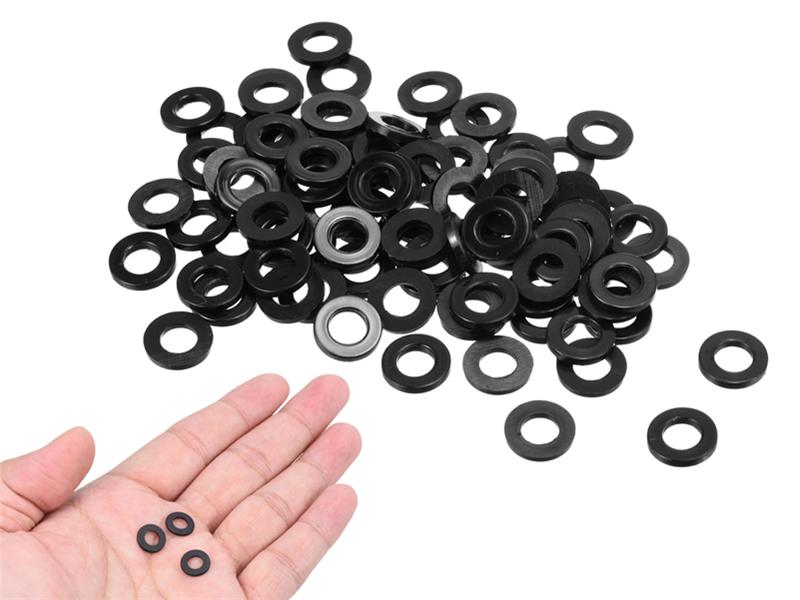

| Small Rubber Washer |  | OD: 2-10 mm | Precision sealing for compact assemblies | Watch mechanisms, micro-motors |
| Thick Rubber Washer |  | Thickness: 3-10 mm | Higher compression resistance, fills larger gaps | Heavy machinery bolting |
| Thin Rubber Washer |  | Thickness: 0.5-2 mm | Space-saving, flexible sealing in tight clearances | Electronics PCB mounting |
Rubber Disc (No Central Hole Rubber Washer)
A rubber disc is a solid, flat circular component made entirely of elastomeric material (e.g., NBR, EPDM, or silicone) with no central hole (Inside Diameter = 0). Engineered for uniform force distribution, its thickness (typically 3-20mm) enables exceptional shock absorption and vibration damping.
These discs function as standalone buffers—placed freely between surfaces without fasteners—to protect equipment from impact damage, provide electrical insulation, or prevent slippage in machinery mounts, medical devices, and industrial flooring applications.
Unlike rubber washers designed for bolt-sealing with a central hole, rubber discs lack any aperture and prioritize full-surface coverage. Washers compress under fasteners to prevent leaks at discrete points; discs absorb energy across their entire solid cross-section. For instance, a 10mm-thick disc cushions a 500kg machine vibration, while a washer seals a pipe bolt—their structural divergence (solid vs perforated) dictates irreplaceable roles: no-bolt scenarios demand discs; fastened joints require washers.
Rubber Washer VS O-Ring
1. Structural Design: Flat rubber washers compress axially for surface sealing, while o-rings rely on radial squeeze to fill gland grooves.
2. Pressure Handling: Washers distribute clamp load broadly for low-pressure applications (<10 MPa), whereas o-rings concentrate sealing force for high-pressure systems (up to 70 MPa).
3. Dynamic Performance: Washers are unsuitable for moving joints due to friction wear, but o-rings also excel in rotary/piston motions with minimal friction.
4. Installation Simplicity: Washers drop directly under bolt heads without tooling, while o-rings demand precise groove dimensions and sometimes lubrication.
5. Cost Efficiency: Washers offer lower cost for static corrosion protection, but o-rings provide reusable sealing in dynamic equipment.
Differences Between Rubber Washers and Gaskets
Scale – Rubber washers are compact, uniformly thick rings (typically 2-50mm OD) engineered for localized compression under fasteners. In contrast, rubber gaskets are significantly larger custom-cut sheets or molded forms (often spanning 100mm to meters) designed to interface with expansive assembly contours.
Function – While washers distribute load and seal discrete fastening points (e.g., bolt/nut interfaces), gaskets seal entire perimeter geometries between flanges, housings, or machinery joints, accommodating complex profiles and area-wide sealing demands across pipelines, enclosures, and pressure systems.
Price – Rubber washers are supercheap (as low as $0.01 each!) because they’re tiny and mass-produced, while gaskets cost way more (think $10-$500+) since they’re bigger, custom-made, and carry way bigger risks—if a gasket fails, you’re not just fixing a bolt, you’re shutting down a whole system.
Flat Rubber Washer Size Chart
The dimension specifications of a standard flat rubber washer are defined by three critical parameters: Inner Diameter (ID), Outer Diameter (OD), and Thickness (T). ID ensures proper fastener clearance (+0.1–0.3mm over bolt size), OD governs load distribution (1.8–2.5× bolt diameter to prevent surface damage), and T controls compression resilience (0.1–0.3× OD for vibration absorption).
Global standards like ASME B18.22M (metric) and SAE J486 (imperial) enforce precision tolerances—e.g., M10: ID=10.5±0.2mm/OD=20.0±0.3mm—ensuring 95% interchangeability and reducing costs by 40%. Even minor deviations carry risks: a 0.1mm OD error can increase stress concentration by 300% on soft materials, while a 0.2mm thickness variation in high-vibration environments may shorten lifespan by 75%. Below are standard metric and imperial sizes for reference:
Standard Metric Rubber Washer Dimensions (ASME B18.22M)
Dimensions are in millimetres (mm) ID = Inside Diameter OD = Outside Diameter T = Thickness
| Bolt Size | ID (mm) | OD (mm) | Tickness (mm) | Standard | Commonly Used |
|---|---|---|---|---|---|
| M1 | 1.10±0.05 | 3.20±0.10 | 0.30±0.05 | ASME B18.22M | Precision instrument screws |
| M2 | 2.20±0.10 | 5.00±0.10 | 0.50±0.05 | DIN 125-1 | Sensor housings |
| M4 | 4.30±0.10 | 9.00±0.20 | 0.80±0.10 | ASME B18.22M | Electrical terminal blocks |
| M6 | 6.40±0.10 | 12.00±0.20 | 1.60±0.10 | ISO 7089 | Faucet valve cores |
| M8 | 8.40±0.10 | 16.00±0.20 | 1.60±0.10 | DIN 125-1 | Automotive engine covers |
| M10 | 10.50±0.20 | 20.00±0.30 | 2.00±0.20 | ISO 7090 | Hydraulic flanges, pump housings |
| M12 | 13.00±0.20 | 24.00±0.30 | 2.50±0.20 | ASME B18.22M | Hydraulic valve blocks |
| M16 | 17.00±0.20 | 30.00±0.30 | 3.00±0.20 | ISO 7090 | Pump flanges |
| M20 | 21.00±0.30 | 37.00±0.40 | 3.00±0.20 | DIN 125-2 | Air compressor brackets |
| M24 | 25.00±0.30 | 44.00±0.50 | 4.00±0.30 | ASME B18.22M | Wind turbine bases |
| M30 | 31.00±0.40 | 56.00±0.60 | 4.00±0.30 | ISO 7091 | Marine engines |
| M36 | 37.00±0.50 | 66.00±0.70 | 5.00±0.30 | DIN 125-2 | Mining machinery |
| M42 | 43.00±0.60 | 78.00±0.80 | 7.00±0.40 | ASME B18.22M | Petrochemical reactors |
Standard SAE Rubber Washer Dimensions (ANSI B18.22.1 / SAE J486)
Dimensions are in inches ID = Inside Diameter OD = Outside Diameter T = Thickness
| Bolt Size | ID (inch) | OD (inch) | Tickness (inch) | Metric Equivalent | Commonly Used |
|---|---|---|---|---|---|
| #4 | 0.125±0.003 | 0.31±0.005 | 0.025–0.04 | M2.3 | PCB electronics |
| #6 | 0.160±0.004 | 0.38±0.006 | 0.03–0.06 | M3.5 | Home appliances |
| #8 | 0.200±0.005 | 0.50±0.008 | 0.04–0.08 | M4 | HVAC & plumbing |
| #10 | 0.250±0.005 | 0.62±0.010 | 0.05–0.10 | M5 | Automotive trim |
| #12 | 0.270±0.005 | 0.69±0.010 | 0.05–0.10 | M6 | Power tools |
| 1/4″ | 0.280±0.005 | 0.75±0.012 | 0.06–0.12 | M6 | Machinery guards |
| 5/16″ | 0.350±0.006 | 0.88±0.012 | 0.07–0.14 | M8 | Engine brackets |
| 3/8″ | 0.420±0.006 | 1.00±0.015 | 0.08–0.16 | M10 | Structural joints |
| 7/16″ | 0.480±0.006 | 1.13±0.015 | 0.09–0.18 | M11 | Agricultural equipment |
| 1/2″ | 0.520±0.008 | 1.25±0.020 | 0.10–0.20 | M12 | Pipe flanges |
| 5/8″ | 0.670±0.008 | 1.50±0.024 | 0.12–0.24 | M16 | Pump assemblies |
| 3/4″ | 0.820±0.010 | 1.75±0.028 | 0.15–0.30 | M20 | Valve covers |
| 7/8″ | 0.940±0.010 | 2.00±0.031 | 0.18–0.35 | M22 | Heavy-duty frames |
| 1″ | 1.100±0.012 | 2.25±0.035 | 0.20–0.40 | M24 | Industrial tanks |
| 1-1/4″ | 1.320±0.015 | 2.50±0.040 | 0.25–0.45 | M30 | Pressure vessels |
| 1-1/2″ | 1.640±0.018 | 3.00±0.048 | 0.30–0.60 | M36 | Large machinery |
Savvy possesses the advanced engineering capability and flexible production capacity to develop and deliver fully customized rubber washer seal solutions tailored to your unique application requirements.
Rubber Washer Materials
The elastic compounds for Rubber Washers are mainly NBR, FKM, Silicone, and EPDM. The hardness (durometer) of these rubbers is Shore A 50 – 90. For colors, NBR and EPDM are black, FKM is brown/black, and Silicone is White/Red/Transparent.
1. NBR (Nitrile/Buna-N)
NBR is the most widely used and cost-effective elastomer for rubber washers. NBR’s strength lies in oil and fuel resistance, making it the go-to choice for automotive and industrial machinery. It performs reliably between -30°C to +120°C and offers excellent compression set resistance at 70-90 Shore A hardness. The acrylonitrile content (18% to 50%) dictates oil tolerance—higher grades seal aggressive lubricants and biodiesel. Common in fuel injector washers, hydraulic pumps, and food processing equipment (requires FDA-compliant formulations). Avoid prolonged exposure to ketones or chlorinated solvents.
2. FKM (Viton)
FKM washers are chemical warfare specialists, resisting acids, bases, and hydrocarbons up to 200°C (low-temp limit: -20°C). Hardness typically ranges from 70 to 90 Shore A for aggressive seals in refineries or chemical reactors. Their trade-off is flexibility—higher fluorine content improves chemical resistance but reduces elasticity. Critical for sealing sulfuric acid pumps, fuel system O-rings, and semiconductor etch tools. Avoid ketones and ammonia.
3. Silicone (VMQ)
Silicone washers dominate extreme-temperature applications, functioning from -60°C to +230°C continuously (short-term to 300°C). Their low compression set (≤20% at 150°C) ensures lasting seals in ovens or cryogenic systems. With hardness options from 20 to 80 Shore A, softer variants cushion medical devices, while firmer grades suit aerospace engine mounts. Though poor against steam and oils, their biocompatibility (USP Class VI) and odorlessness are essential for pharma and food contact zones like beverage gaskets.
4. EPDM
EPDM washers excel in weathering resistance, handling UV exposure, ozone, and steam without degradation. With an operating range of -50°C to +150°C (short peaks at 180°C), they maintain flexibility in freezing conditions while sealing hot water lines. Typical hardness ranges from 50 to 90 Shore A, allowing customization for plumbing gaskets or automotive cooling systems. Their weak point is hydrocarbon fuels—avoid in oil/gas applications. Ideal for outdoor HVAC units, dishwasher seals, and solar thermal installations.

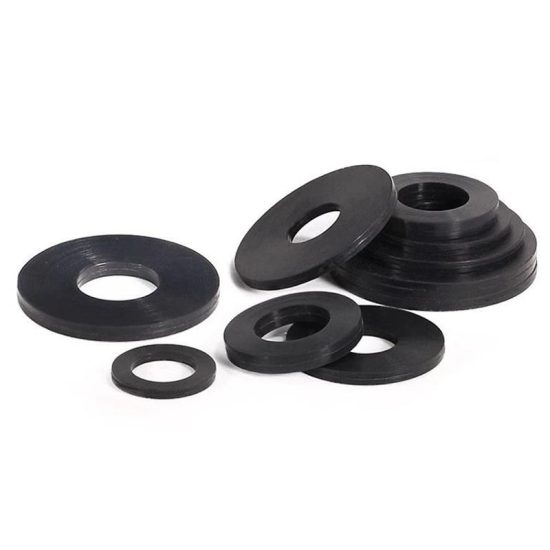

Select the optimal material (NBR, FKM, VMQ, or EPDM) based on your specific operating conditions, media, and temperature. If you require special rubber compounds, such as FVMQ (blue), Neoprene, SBR, or FFKM (recommended for high-temperature and heat-resistant rubber washers), we can also supply them.
Rubber Washer Advantages
As essential engineering components, rubber washers deliver critical performance advantages:
- Rubber washers provide reliable leak-proof sealing for fluids and gases.
- They effectively absorb vibrations and reduce operational noise.
- These washers protect surfaces from scratches and corrosion damage.
- Electrical insulation properties enhance safety in electrical assemblies.
- Their flexibility ensures consistent performance under compression and movement.
Rubber Washer Applications
Rubber washers serve as indispensable sealing solutions across domestic and industrial settings, notably in faucet assemblies and shower head joints, where they prevent water leaks around threaded connections. They cushion bolt and nut interfaces in machinery to distribute load and absorb vibrations, while also protecting sink and tap surfaces from scratches under metal fasteners. In plumbing systems, these washers seal pipe flanges, secure drain hose couplings, and maintain pressure integrity in garden hose fittings. Their electrical insulation properties safeguard screw and nail fixtures in electrical enclosures, proving vital from HVAC ducting to automotive fluid lines where vibration resistance and leak-proof performance are non-negotiable.
